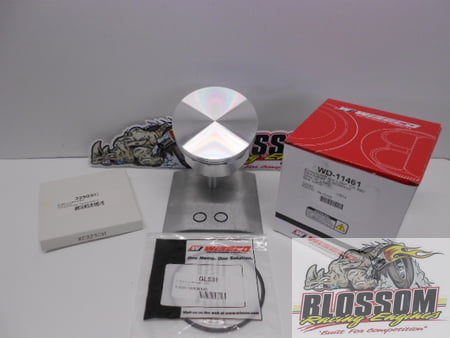

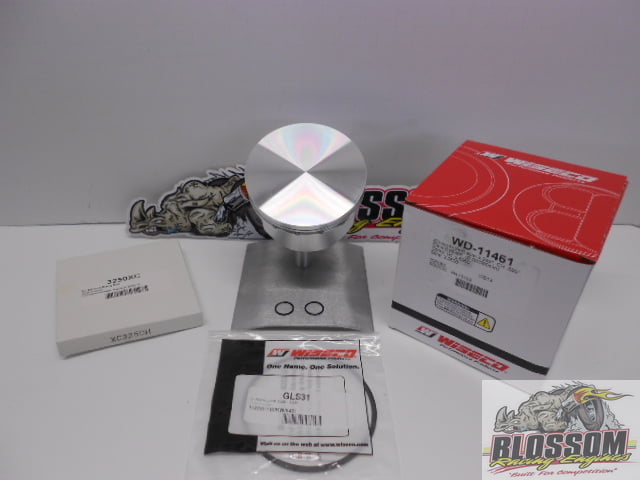

| Part# WD-11461: Specifications: - Piston measures 3.246.5 Finish bore size is 3.250.
- Compression 595
- Weighs 181 grams
- 3.5 to 4 thou piston to wall clearance.
**Measurements are done with our Micrometers**
Parts:
- Piston
- 2.075 length wrist pin. HD .490 DIAMETER.
- Complete Ring Kit 3.250XC
- Support Ring GLS31
- Spiral locks.
- 2 Ring Piston.
|
